ATV Snarler

119920890_327419152012098_74677199349066

Segway ATV Snarler

4 modellen ATV's.

-Snarler AT6S - kort chassis
-Snarler AT6L - lang chassis
-Snarler AT6Hybride - lang chassis
-Snarler AT10L - lang chassis

Clean and robust bodywork signals the strength and utility of the Snarler, while its pouncing gesture makes the design feel constantly in motion. The visual massing, seen in the broad shoulders and sweeping hood, communicate the vehicle is planted firmly to the ground and capable of carrying heavy loads. All the while the sleek and flowing lines, extending upward from the front to the back of the vehicle, help show the vehicle is quick and nimble. Subtle details, like the pillion seat break, help indicate how focused the design is on enabling the ultimate passenger experience.

SEGWAY POWERSPORTS BELGIUM

de quadwinkel bij uitstek


EXPECT  February 2021

SNARLER AT6S

Powertrain:  Fuel Engine

Engine/Motor type:  Powerful 570cc, 4-Stroke, DOHC Engine

Horsepower:  44Hp

Torque:  48 N.m

Drive System:  On-Demand 2WD/4WD

Front axle:  Automatic Diff-Lock

Rear axle:  Rear Diff-Lock

Engine Braking System:  Yes

Brakes:  4 disc brakes with double piston caliber

Front suspension & Travel:  Gas Shock, Dual A-Arm 18cm

Rear  suspension  & Travel:  Gas Shock, Dual A-Arm 21cm

Wheels:  14inch Beadlock wheels

Tires:  26x8-14 / 26x10-14

Smart Commanding System   (DTU+SDC):  Yes

Dashboard:  Digital

Smart-Moving  App:  Yes, App for Android and Iphone

Vehicle  Size:  215x125x154cm

Ground Clearance:  27cm

Seat  Height:  93cm

Wheel base:  130cm

Dry Weight:  360Kg

Fuel  capacity:  23Liter

Rack  Capacity:  40kg front / 60Kg rear

Front and rear rack:  Steel with strong plastic cover

Payload Capacity:  195Kg

Smart  Power Steering   (EPS): Yes, 3modes

Frame:  Strong molybdenum steel frame

Cooling  sytem:  Dual, Liquid & Oil Exchange

Lights:  LED

Seats: 1

Euronorm: 5

Winch: Standard

SNARLER AT6L

Powertrain:  Fuel Engine

Engine/Motor type:  Powerful 570cc, 4-Stroke, DOHC Engine

Horsepower:  44Hp

Torque:  48 N.m

Drive System:  On-Demand 2WD/4WD

Front axle:  Automatic Diff-Lock

Rear axle:  Rear Diff-Lock

Engine Braking System:  Yes

Brakes:  4 disc brakes with double piston caliber

Front suspension & Travel:  Gas Shock, Dual A-Arm 18cm

Rear  suspension  & Travel:  Gas Shock, Dual A-Arm 21cm

Wheels:  14inch Beadlock wheels

Tires:  26x8-14 / 26x10-14

Smart Commanding System   (DTU+SDC):  Yes

Dashboard:  Digital

Smart-Moving  App:  Yes, App for Android and Iphone

Vehicle  Size:  230x125x154cm

Ground Clearance:  27cm

Seat  Height:  93cm

Wheel base:  145cm

Dry Weight:  385Kg

Fuel  capacity:  23Liter

Rack  Capacity:  40kg front / 60Kg rear

Front and rear rack:  Steel with strong plastic cover

Payload Capacity:  270Kg

Smart  Power Steering   (EPS): Yes, 3modes

Frame:  Strong molybdenum steel frame

Cooling  sytem:  Dual, Liquid & Oil Exchange

Lights:  LED

Seats: 2

Euronorm: 5

Winch: Standard


EXPECT  February 2021


EXPECT MID 2021

SNARLER AT6H

Hybride

Powertrain:  Fuel Engine +Electro (Hybride)

Engine/Motor type:  Powerful 570cc, 4-Stroke, DOHC Engine

Horsepower:  86Hp

Torque:  96 N.m

Drive System:  On-Demand 2WD/4WD

Front axle:  Automatic Diff-Lock

Rear axle:  Rear Diff-Lock

Engine Braking System:  Yes

Brakes:  4 disc brakes with double piston caliber

Front suspension & Travel:  Gas Shock, Dual A-Arm 18cm

Rear  suspension  & Travel:  Gas Shock, Dual A-Arm 21cm

Wheels:  14inch Beadlock wheels

Tires:  26x8-14 / 26x10-14

Smart Commanding System   (DTU+SDC):  Yes

Dashboard:  Digital

Smart-Moving  App:  Yes, App for Android and Iphone

Vehicle  Size:  230x125x154cm

Ground Clearance:  27cm

Seat  Height:  93cm

Wheel base:  145cm

Dry Weight:  460Kg

Fuel  capacity:  25Liter

Rack  Capacity:  40kg front / 60Kg rear

Front and rear rack:  Steel with strong plastic cover

Payload Capacity:  270Kg

Smart  Power Steering   (EPS): Yes, 3modes

Frame:  Strong molybdenum steel frame

Cooling  sytem:  Dual, Liquid & Oil Exchange

Lights:  LED

Seats: 2

Euronorm: 6

Winch: Standard

SNARLER AT10L

Powertrain:  Fuel Engine

Engine/Motor type:  Powerful 1000cc, 4-Stroke, DOHC Engine

Horsepower:  107Hp

Torque:  98 N.m

Drive System:  On-Demand 2WD/4WD

Front axle:  Automatic Diff-Lock

Rear axle:  Rear Diff-Lock

Engine Braking System:  Yes

Brakes:  4 disc brakes with double piston caliber

Front suspension & Travel:  Gas Shock, Dual A-Arm 18cm

Rear  suspension  & Travel:  Gas Shock, Dual A-Arm 21cm

Wheels:  14inch Beadlock wheels

Tires:  26x8-14 / 26x10-14

Smart Commanding System   (DTU+SDC):  Yes

Dashboard:  Digital

Smart-Moving  App:  Yes, App for Android and Iphone

Vehicle  Size:  235x128x155cm

Ground Clearance:  27cm

Seat  Height:  91cm

Wheel base:  149cm

Dry Weight:  445Kg

Fuel  capacity:  25Liter

Rack  Capacity:  40kg front / 60Kg rear

Front and rear rack:  Steel with strong plastic cover

Payload Capacity:  270Kg

Smart  Power Steering   (EPS): Yes, 3modes

Frame:  Strong molybdenum steel frame

Cooling  sytem:  Dual, Liquid & Oil Exchange

Lights:  LED

Seats: 2

Euronorm: 5

Winch: Standard


EXPECT 2022

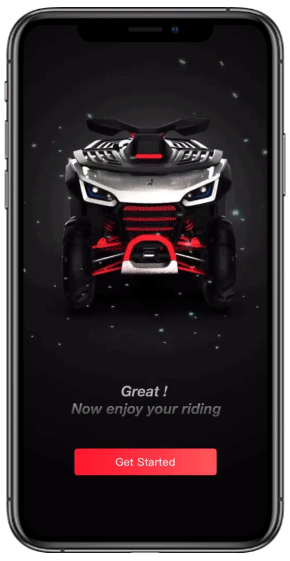

Smart Moving & Smart Fun

You can access the real-time data of your vehicle through Smart Commanding System(SCS) . The intelligent interaction with your vehicle leads you to epic places to ride!

AirLock

When you get close to Snarler, you can activate your vehicle by Bluetooth through your mobile phone(AirLock). You can also use the APP(cellular data) to unlock the car remotely with your mobile phone as the key.

Driving Settings

Get the Speed limit Settings, EPS Settings on your phone. Customize your Powersports (I think it would be addressed as Powersport singular)? for a personal fit, so you can enjoy the drive!

Security Guarantee

Add SOS emergency contact person. In case of serious collision/roll, the APP will automatically send SMS with location to the emergency contact person.

Wireless Team Up

Team up with friends. The offline map, wireless location, wireless phone help you explore everytime you ride.

Real-Time Data

Vehicle data view: residual mileage, real-time torque, horse power, EPS mode, subtotal mileage, speed curve, etc.

SEGWAY ATV SNARLER
